NetWaySP8WPX3

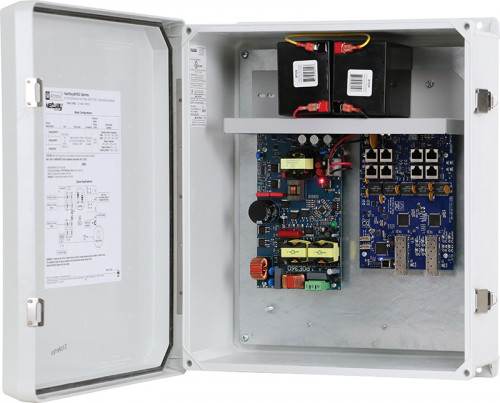

Dual Fiber Optic SFP 1G Link, 8-port Network Managed PoE+ switch and 320W Power Supply/Charger mounted in NEMA4/4X, IP66 rated Outdoor enclosure. Accommodates up to four (4) 12VDC/4AH batteries
Altronix NetWaySP8WPX3 supports up to 60W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and eight (8) PoE+ (30W) or two (2) 60W Ethernet ports. NetWaySP8WPX3 accommodates single/multi-mode fiber cable (fiber+copper) to deliver data from NetWay Spectrum head-end media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.
Specifications
Input
- Voltage: 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A
- Input Fuse: 5A/250V
Power Output
Maximum Power:
- Eight (8) PoE+ (30W) ports or two (2) 60W ports
- IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant
- 360W total power
- Integral surge protection
SFP Ports:
- Two (2) Gigabit SFP ports
Ethernet Ports
- Six (6) 10/100 Mbps and two (2) 10/100/1000 Mbps ports
- Connectivity: RJ45, auto-crossover
- Wire type: 4-pair CAT5e or higher structured cable
- Distance: up to 100m.
- Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
Battery Charging
- Type: 48VDC charging circuit charges Sealed lead acid or gel type batteries (within enclosure, ventilation is required)
- Failover: Upon AC loss, instantaneous
- (Batteries are sold separately)
Indicators (LED)
- Individual PoE On LEDs for each port
- Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
- ALOS LED indicates fiber connection for SFP port
- Heartbeat LED indicates proper operation of the unit
VLAN
- Multiple management VLAN assignment
- 802.1Q Tagged VLAN
- Up to 10 VLAN groups. ID Range 2-4095
LINQ Technology
- Remote network power management allows for camera/device reset and diagnostic monitoring
- Provides local and/or remote access to critical information via LAN/WAN
- Email and Windows Dashboard Alert notifications report real-time events
- Event log tracks history
Temperature
Operating Temperature:
- 360W: – 30ºC to 70ºC (– 22ºF to 158ºF)
- 240W: – 30ºC to 75ºC (– 22ºF to 167ºF)
- Storage Temperature: - 30ºC to 85ºC (- 22º to 185ºF)
- Relative Humidity: 85% +/- 5%
- BTU/Hr.(approx.): 183 BTU/Hr.
Operating Altitude
- - 304.8 to 2,000m.
Agency Listings
CE Compliant
Accessories
| Name | Description |
|---|---|
| PMK2 | Pole Mount Kit, For Outdoor Enclosures |
| P1MM | Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver |
| P1SM10 | Small Form-Factor Pluggable (SFP) Single Mode Transceiver |
| P1AB2K | Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit |
| P1GCE | Small Form-Factor Pluggable (SFP) Copper Transceiver |
| NetWaySP1A | PoE Powered Ethernet to Fiber Media Converter/Repeater. |
| LOCK1WP | Pad Lock for Altronix Outdoor Enclosures |
Similar Products
| Name | Description |
|---|---|
| NetWaySP8PL3 | Dual Fiber Optic SFP 1G Link, 8-port Network Managed PoE+ switch and 320W Power Supply/Charger mounted on Backplane version |
| NetWaySP8WP3 | Dual Fiber Optic SFP 1G Link, 8-port Network Managed PoE+ switch and 320W Power Supply/Charger mounted in NEMA4/4X, IP66 rated Outdoor enclosure |
| NetWaySP8X3 | Dual Fiber Optic SFP 1G Link, 8-port Network Managed PoE+ switch and 320W Power Supply/Charger mounted in NEMA1 rated Indoor enclosure |
Dimensions & Weight
Enclosure:
- NEMA 4/IP 66 Rated enclosure for outdoor use.
- Accommodates up to four (4) 12VDC/4AH Batteries.
- Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
- Product Weigtht: 15 Lbs. (6.8 kg).
- Shipping Weigtht: 17.5 Lbs. (7.9 kg).
